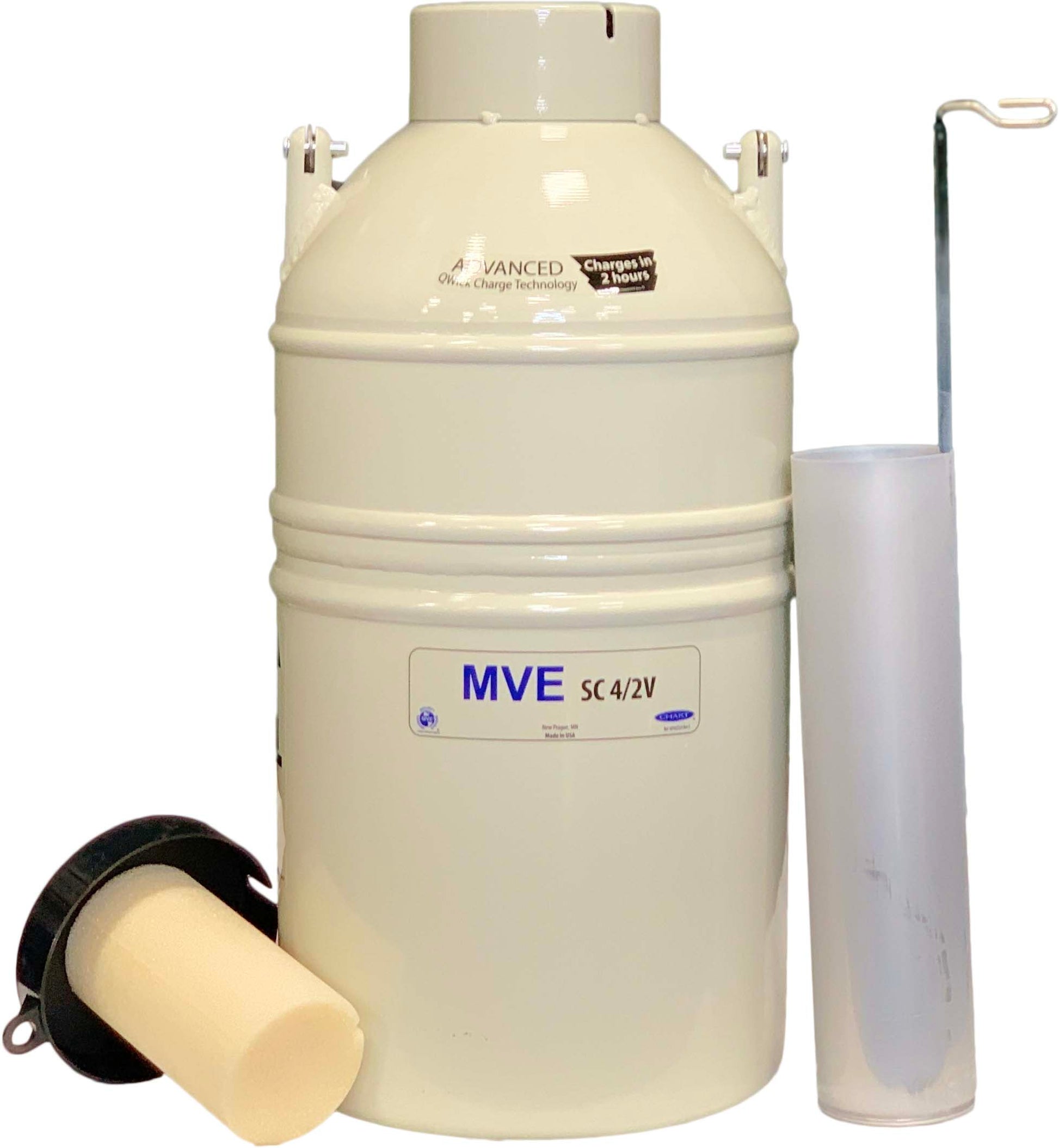

The MVE CryoShipper Series is designed for the safe transportation of biological samples at cryogenic (-150°C or colder) temperatures. MVE CryoShipper Series utilizes the Advanced QWick Charge Technology that will charge the vapor shipper in two hours. *New/warm tanks still need to be filled with LN2 and allowed to sit for 24 hours to achieve maximum hold time. When a tank is already cold, the Advanced QWick Charge technology will apply, providing the benefit of same-day vapor shipping. Manufactured from durable, lightweight aluminum, the vapor shippers employ a hydrophobic compound which absorbs the liquid nitrogen to ensure dry, spill-free vapor-phase shipping.

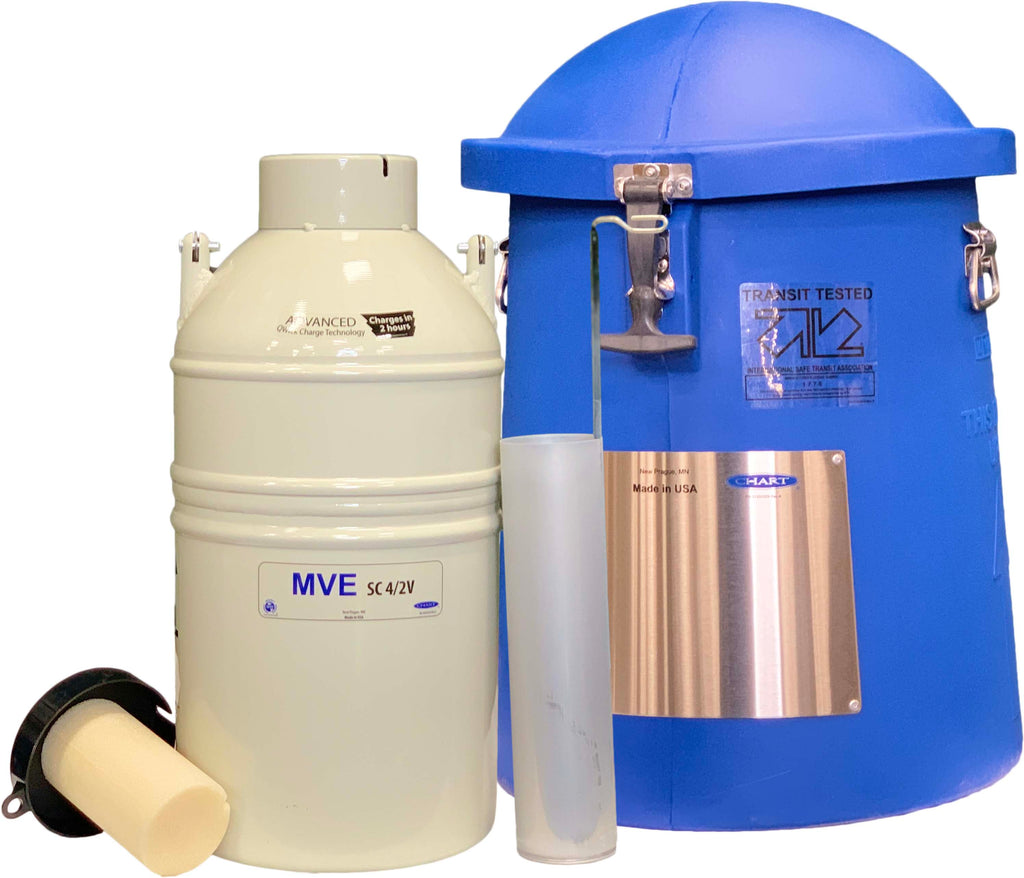

MVE Protective Shipping Containers are recommended for usage. These containers may be used to ship your samples with a “non-hazardous” classification throughout the world, thus reducing costs and helping to assure sample viability.
Protective Shipping container not included in this specific product
Featuring Advanced QWick Charge Technology
Specifications
| Maximum Storage Capacity | |
| No of Canisters | 1 |
| No of 1/2 cc Straws (10/cane) | 280 |
| No. of 1/2cc Straws 1 Level Bulk | 44 |
| No of 1/4 cc Straws 1 Level Bulk | 938 |
| Performance (Hold Time overrides NER specifications) | |
| LN2 Capacity w/o Inventory L est | 3.6 |
| Static Holding Time Days | 13 |
| Static Evaporation Rate* L/day | 0.26 |
| Unit Dimensions | |
| Neck Opening in (mm) | 2.75 (70.0) |
| Over Height in (mm) | 18.4 (468) |
| Outside Diameter in (mm) | 8.70 (222) |
| Canister Height in (mm) | 11.0 (279) |
| Canister Diameter in (mm) | 2.62 (67) |
| Weight Empty lb. (kg) | 10.0 (4.5) |
| Weight Charged vapor lb (kg) | 17.1 (7.7) |
| Weight Full liquid lb (kg) | 20.0 (9.1) |
| Plastic Protective Shipping Container (part #) | 20750409 |
Features
* Static evaporation rate and static holding time are nominal. Actual rate and holding time will be affect by the nature of container use, atmospheric conditions, and manufacturing tolerances.
- MVE Protective Shipping Containers are recommended
- Protective Containers ensure upright shipping
- Liquid and vapor storage options
- Low liquid nitrogen consumption
- Charges in 2 Hours
- Three Year Manufacturers Vacuum Warranty
Literature & Manuals
Chart/MVE Specification Sheet - CyroShipper Series
