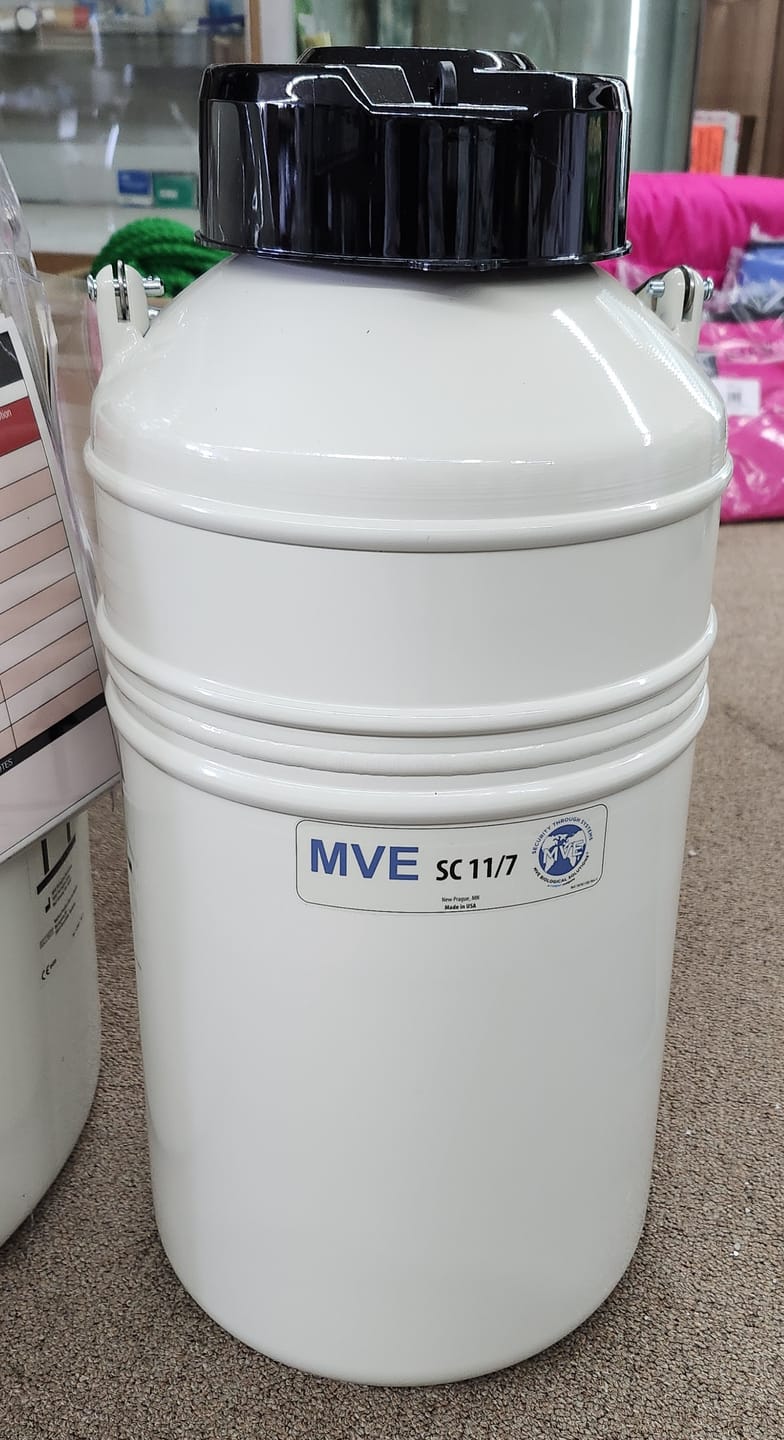

The SC Series is designed for the user who has small capacity needs, but requires long-term storage and low liquid nitrogen consumption in a convenient lightweight package. The SC or "Standard Capacity" series achieves the low liquid nitrogen consumption by maintaining the neck opening at 2.18" across each tank in the series conforming to the industry standard 1.65" diameter canister. MVE offers the widest range of compact aluminum storage tanks available on the market today. Over the past 50 years, our product designs have improved through end-user input and evolved into a unique selection of units.
Specifications
| Maximum Storage Capacity | |
| No of Canisters | 6 |
| No of 1/2 cc Straws (10/cane) | 660 |
| Number of 1/2 cc Straws (1 Level Bulk) | 879 |
| Performance (Hold Time overrides NER specifications) | |
| LN2 Capacity w/o Inventory L est | 11.0 |
| Static Evaporation Rate L/day | 0.16 |
| Working Duration (Full Days) | 43 |
| Unit Dimensions | |
| Neck Opening in (mm) | 2.18 (55) |
| Over Height in (mm) | 21.6 (549) |
| Outside Diameter in (mm) | 10.2 (260) |
| Canister Height in (mm) | 11.0 (279) |
| Canister Diameter in (mm) | 1.65 (41.9) |
| Weight Empty lb. (kg) | 17 (7.7) |
| Weight Full liquid lb (kg) | 36.6 (16.3) |
* Static evaporation rate and static holding time are nominal. Actual rate and holding time will be affect by the nature of container use, atmospheric conditions, and manufacturing tolerances.
Features
- Designed for efficient storage of straws
- Low liquid nitrogen consumption
- Convenient lightweight package
- Five Year Manufacturers Vacuum Warranty
Literature & Manuals
Chart/MVE Specification Sheet - SC Series
