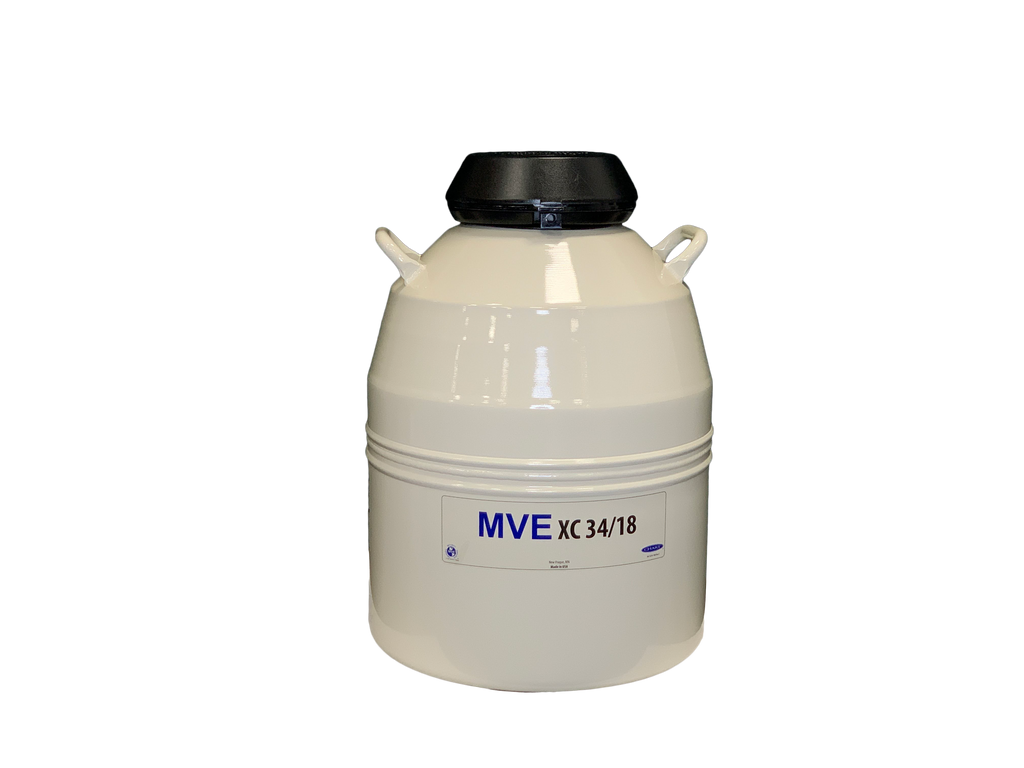

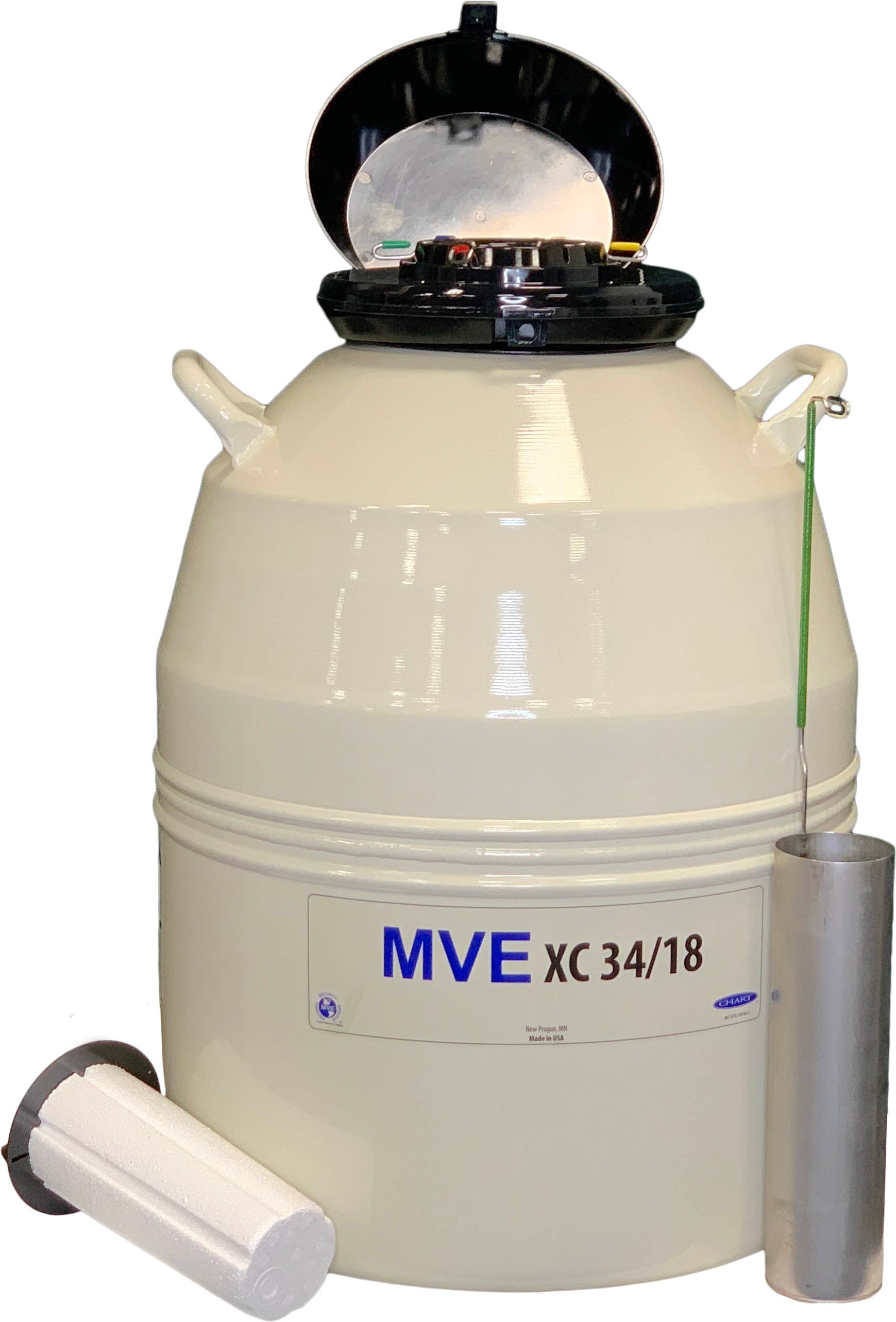

XC 34/18 - Holds 2100 straws for 18 weeks
XC 34/18 - Holds 2100 straws for 18 weeks
Regular price
Regular price
Sale price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The XC 34/18 tank is our most popular large capacity tank. This is a big tank and holds up to 2100 straws. With a hold time of 18 weeks, refill times are manageable.
This is also our favorite larger tank because it has a neck opening which is 3.5 inches wide. You can actually see what you are doing!!! Add a light and this model will quickly become your personal favorite as well.
Specifications
| Maximum Storage Capacity | |
| No of Canisters | 6 |
| No of 1/2 cc Straws (10/cane) | 2,100 |
| Number of 1/2 cc Straws (1 Level Bulk) | 3,300 |
| Performance (Hold Time overrides NER specifications) | |
| LN2 Capacity w/o Inventory L est | 34.8 |
| Static Evaporation Rate L/day | 0.18 |
| Working Duration (Full Days) | 123 |
| Unit Dimensions | |
| Neck Opening in (mm) | 3.50 (89) |
| Over Height in (mm) | 26.6 (675) |
| Outside Diameter in (mm) | 18.2 (464) |
| Canister Height in (mm) | 11.0 (279) |
| Canister Diameter in (mm) | 2.8 (71) |
| Weight Empty lb. (kg) | 34 (15.4) |
| Weight Full liquid lb (kg) | 96.0 (43.5) |
* Static evaporation rate and static holding time are nominal. Actual rate and holding time will be affect by the nature of container use, atmospheric conditions, and manufacturing tolerances.
Features
- High Storage Capacity
- Low liquid nitrogen consumption
- Precision Manufacturing
- Convenient lightweight package
- Five Year Manufacturers Vacuum Warranty
Literature & Manuals
Chart/MVE Specification Sheet - XC Series
